Honda Rear AC Vent Assembly Kit


Sale price ₱10,000.00 Regular price ₱18,000.00

Shipping calculated at checkout.
  • Rear AC vent for Accord 10-11th Gen, Civic 10th-11th Gen, Type-R FL5 and HRV US Model.
  • Added comfort to your rear passenger
  • Make your cabin cooldown faster if parked under the sun.
  • Provide additional 2 fast USB charging port for convenience.
  • More premium looking interior with Rear AC vent visible

Updates:

  • Added HRV - US model
  • Added Civic Type-R FL5
  • Added Accord 23-24 11th Gen
  • Added Accord 18-22 10th Gen

IMPORTANT!

  • USA models for Civic 10-11th Gen need to drill holes in their armrest bin to place the air tube! Do not purchase if you do not agree.
  • Type-R FL5 model, no need to cut holes. Type-R installation guide here



  • Honda Civic 11th Gen 22-23

Note: Standard vs with Tube Splitter - In Standard model to get the air flowing to the rear vent you need to set the air circulation mode to Front + Bottom or Bottom only. While with Tube Splitter, it will automatically supply air to the rear vent regardless of the air circulation mode.



*** Cutting is for 11th Gen CIVIC Only***

CLICK HERE FOR HOLE CUTTING GUIDE for USA and CANADA!

  • USA and Canada models need to cut a slot in the armrest storage bin so the tube can run to the rear.

REMINDER!

  • Before cutting a hole in the armrest bin, we recommend to modify (trim excess plastic) and test fit the new rear ac panel first until it snaps in perfectly so incase you wish not to continue the installation the armrest storage bin is still remain intact and not modified. Putting a hole will be permanent.



  • Please do not purchase if you do not agree and we will not accept return/refund if you are unable to install the item. We will do our best to help you install it, just contact us in Facebook or Instagram. This kit was already installed many times by others and us but it really needs extra effort.

  • To insert the new panel, engage the lower part first then middle and lastly the top clip.
  • Make sure the top clips are align in the hole before you push them hard so they wont snap and break! Align the top clips using you finger.

WATCH VIDEO HERE: (Once the panel fits good, you can start cutting hole in the armrest storage bin if you wish to continue)



  • INSTALLATION VIDEO GUIDE


  • Center console must be removed to easily layout the air tube to the rear
  • The Air Tube is OEM fit to the center console and will not make an issue
  • Original Style from Honda has fast charging feature.

  • Before Installation

  • After Installation

  • Air flow can redirect and can close if not going to use

  • With 2 Fast Charging USB Ports

  • Standard Model Package for Civic 22-23 - PHASED OUT!

  • With Tube Spitter Model Package for Civic 22-23 (RECOMMENDED MODEL)

Note: Please check and remove your Rear Panel if the slot is present. If none, you need to Dremel a hole so the tube can run from the center up to the rear.

  • No hole

  • Civic with With Ready Hole for Tube Slot (US and Canada Models need to cut a slot)

  • Civic Type-R FL5

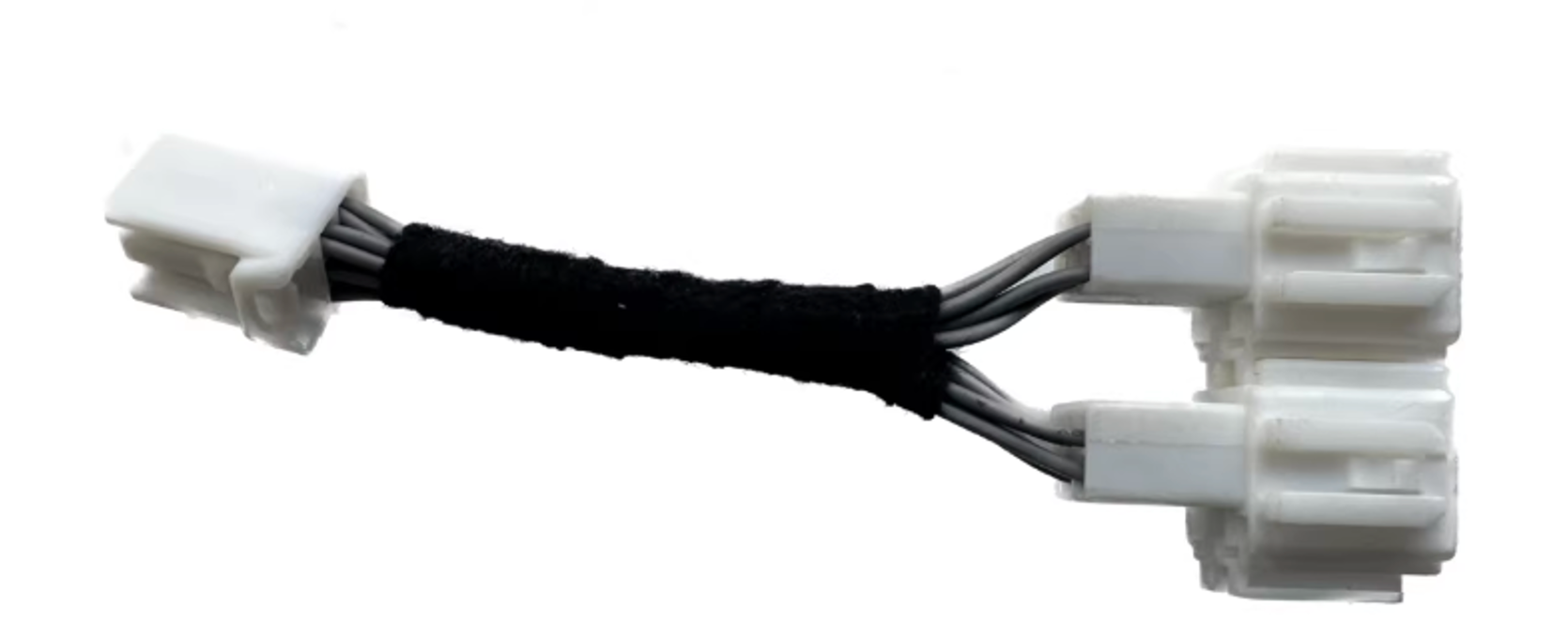

  • Splitter with long tube attached

  • Long Tube Layout

  • After installation effect

  • Also available for Civic 16-21 10th Gen
  • For USA model - need to drill hole in the armrest bin as well. Do not purchase if you do not agree!



  • HRV US Model - Rear AC Vent Kit
  • Please remove your rear cover and check first if the bottom area has a slot for the tube.
  • HRV US INSTALLATION GUIDE

  • Now available for Honda Accord 23-24 11th Gen

  • Check your accord if this has this hole in the bottom part.

  • Extra step needed to install the kit for Accord 23-24. Do not buy if you do not agree!
  • Remove the HVAC cover and cut 2 holes. Insert the 2 plastic hose and connect to the long air tube.

  • Make sure to seal the gap with HVAC tape and silicon to avoid air leak. The arrow below is the distance between HVAC cover and air tube going to the rear.

  • Accord 18-22 - 10th Gen
  • Please remove your rear cover if there is a hole below
