CX5 CX8 CX9 BOSE Speakers Upgrade

• BOSE Speaker upgrade for CX5 Non-Bose trim
• Original and genuine Mazda parts
• Upgrading your Centerpoint + Tweeter will enjoy the effect of BOSE 3D surround.
• All speakers are plug and play. Direct replacement.
• No hard wiring and tracing of audio lines.

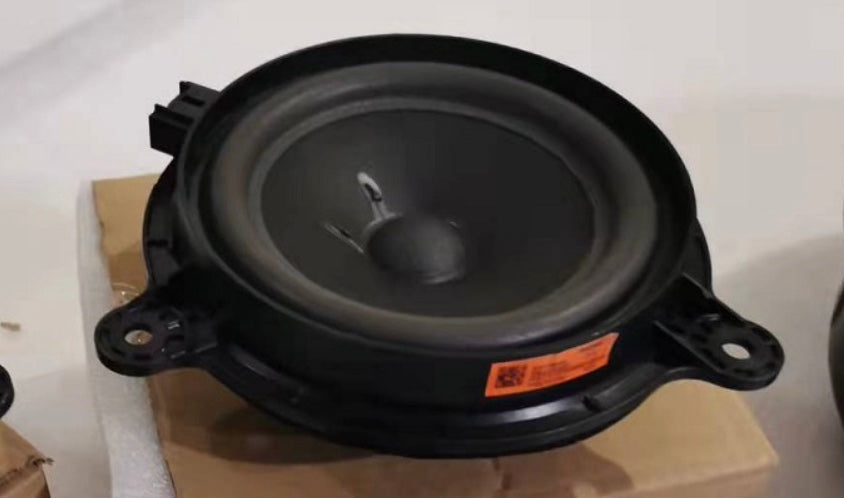

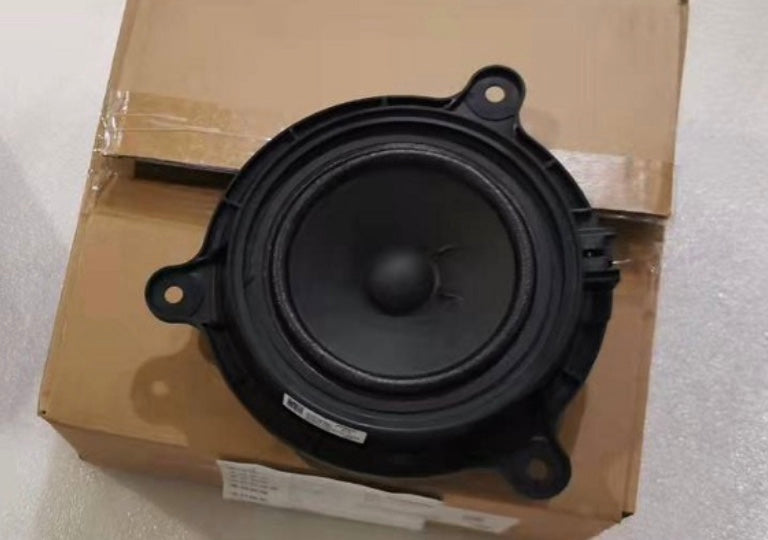

Front Door BOSE

A-Pillar Tweeter - Non-BOSE sample

-it has very low sound output and can barely hear a sounds.

-No additional harness needed.

-The plain plastic cover can also be replaced with BOSE Silver Cover to make it stand out and feel premium!

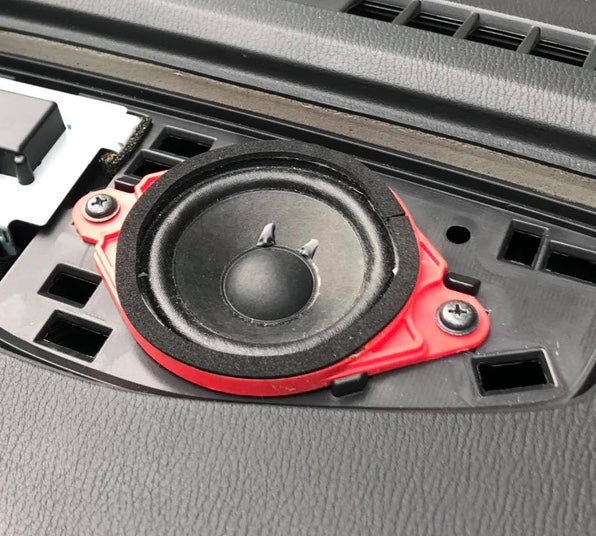

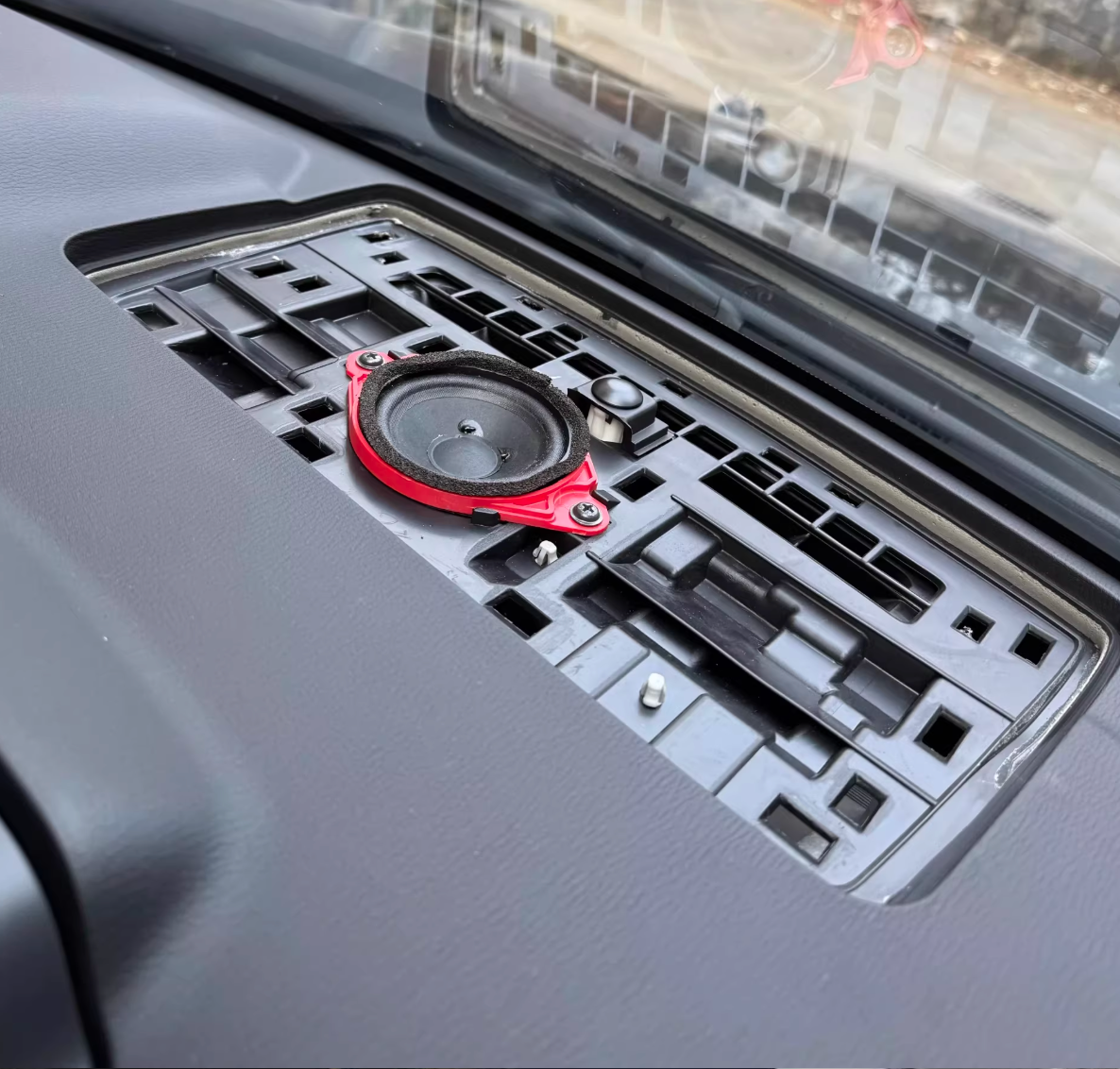

Centerpoint Speaker - Non BOSE

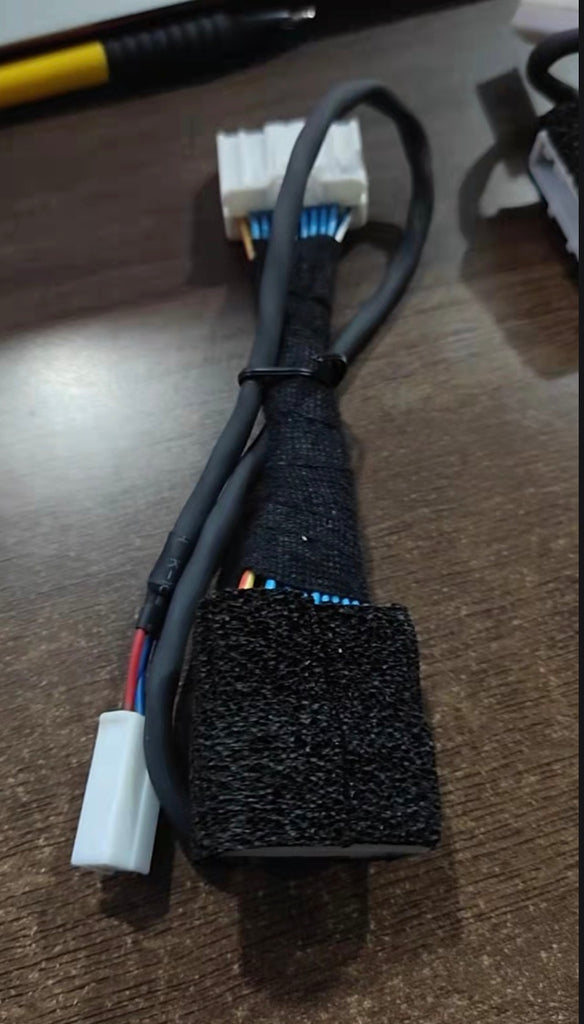

-Dummy cover is installed. Can be removed and replace by a BOSE Centerpoint speaker. Add the Centerpoint harness so it can get audio signal from the CMU Host. The harness is plug and play.

-If you are going to order the centerpoint speaker, kindly add the centerpoint harness as well.

Connect T-harness of the center speaker to the TAU unit located below the glove box.

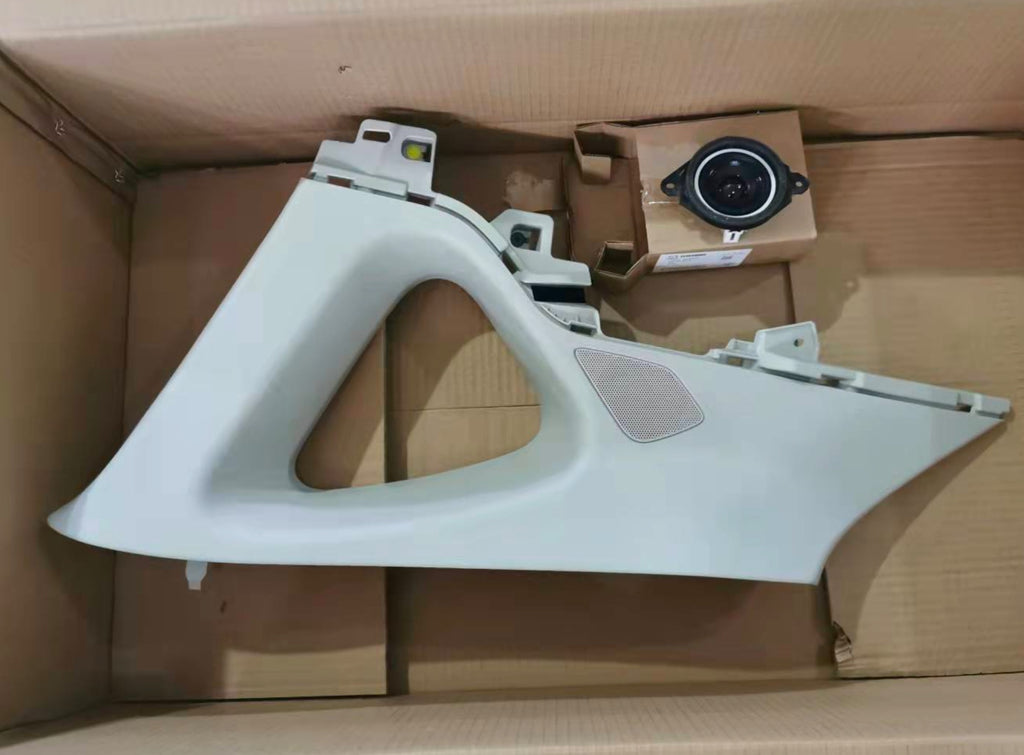

D - Pillar Panel + Bose Speaker

-Original D Pillar for Non-BOSE has no speaker grill slot, so you need to replace the Plastic Pillar with speaker slot.
